Model 1600RS-HB

Category:

For more Model 1600RS-HB information: Contact Johnson Manufacturing at

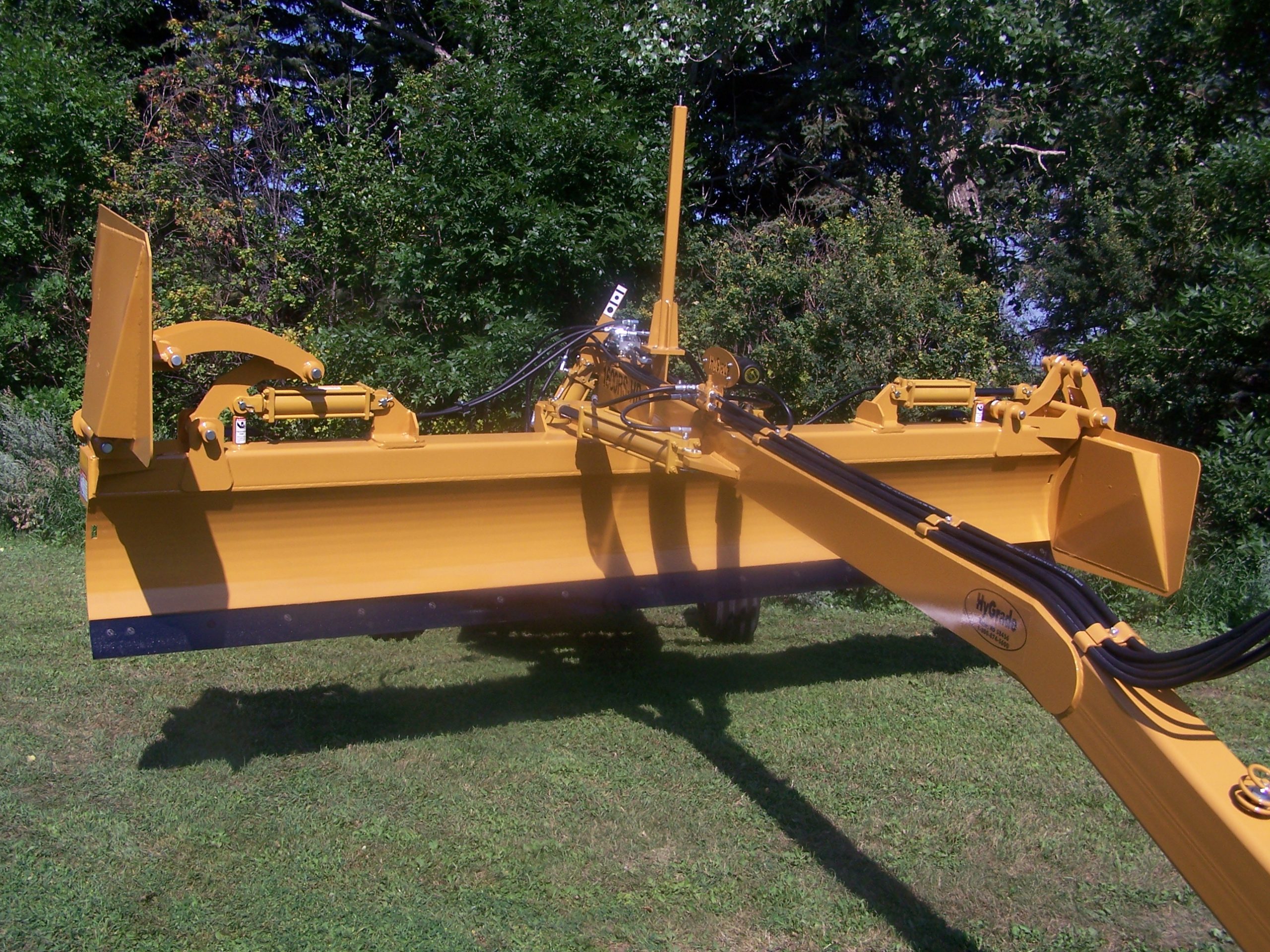

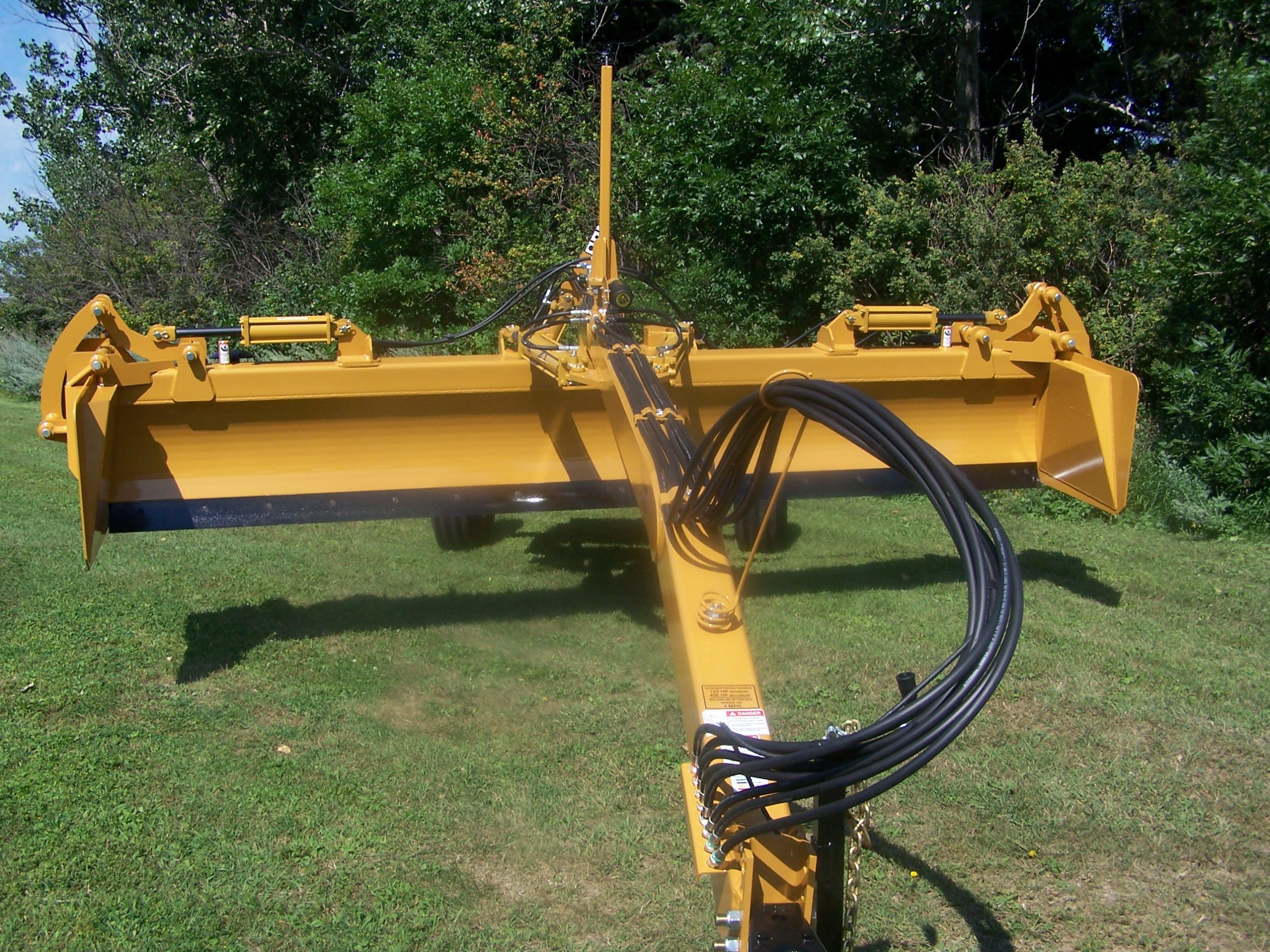

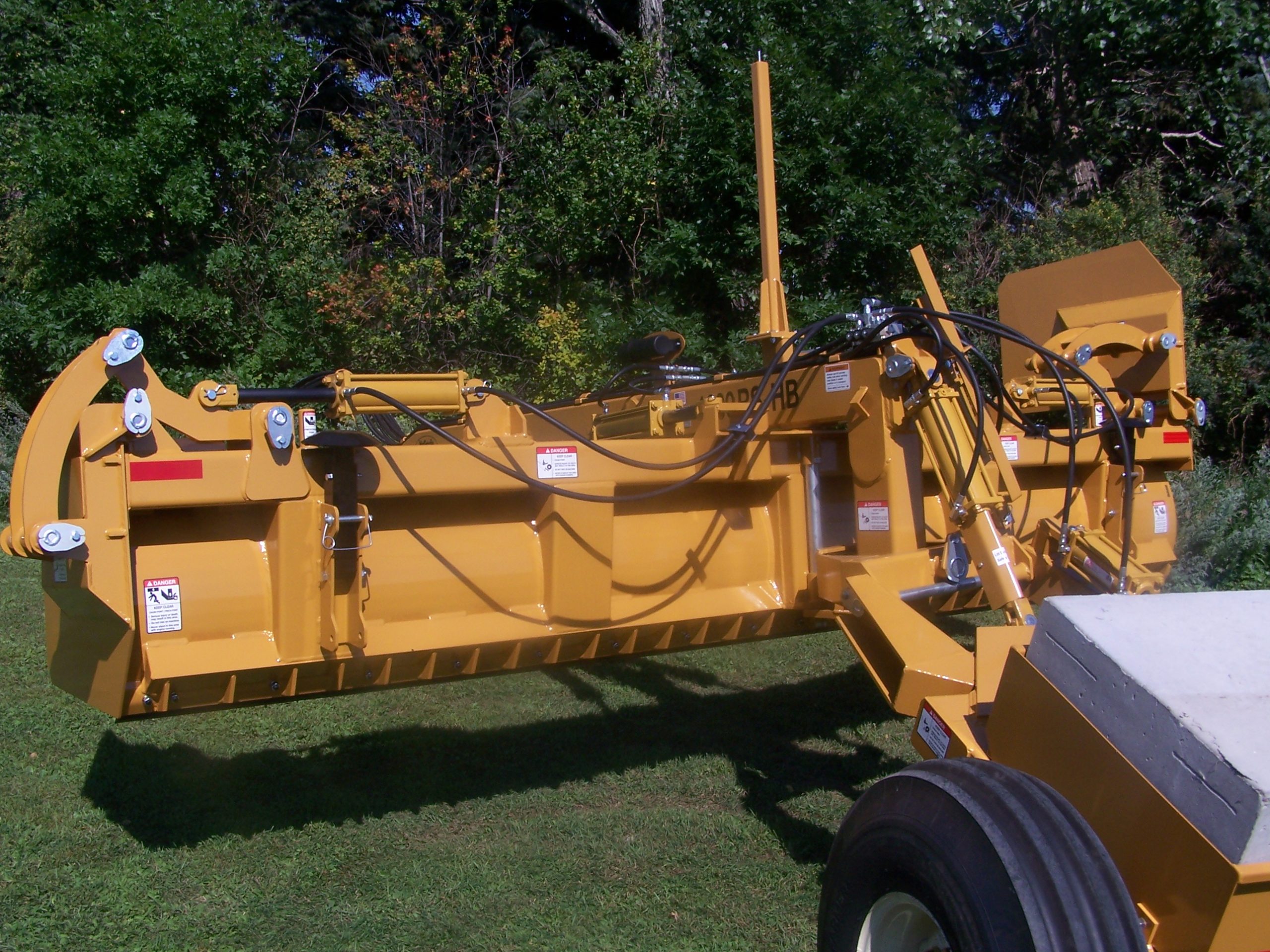

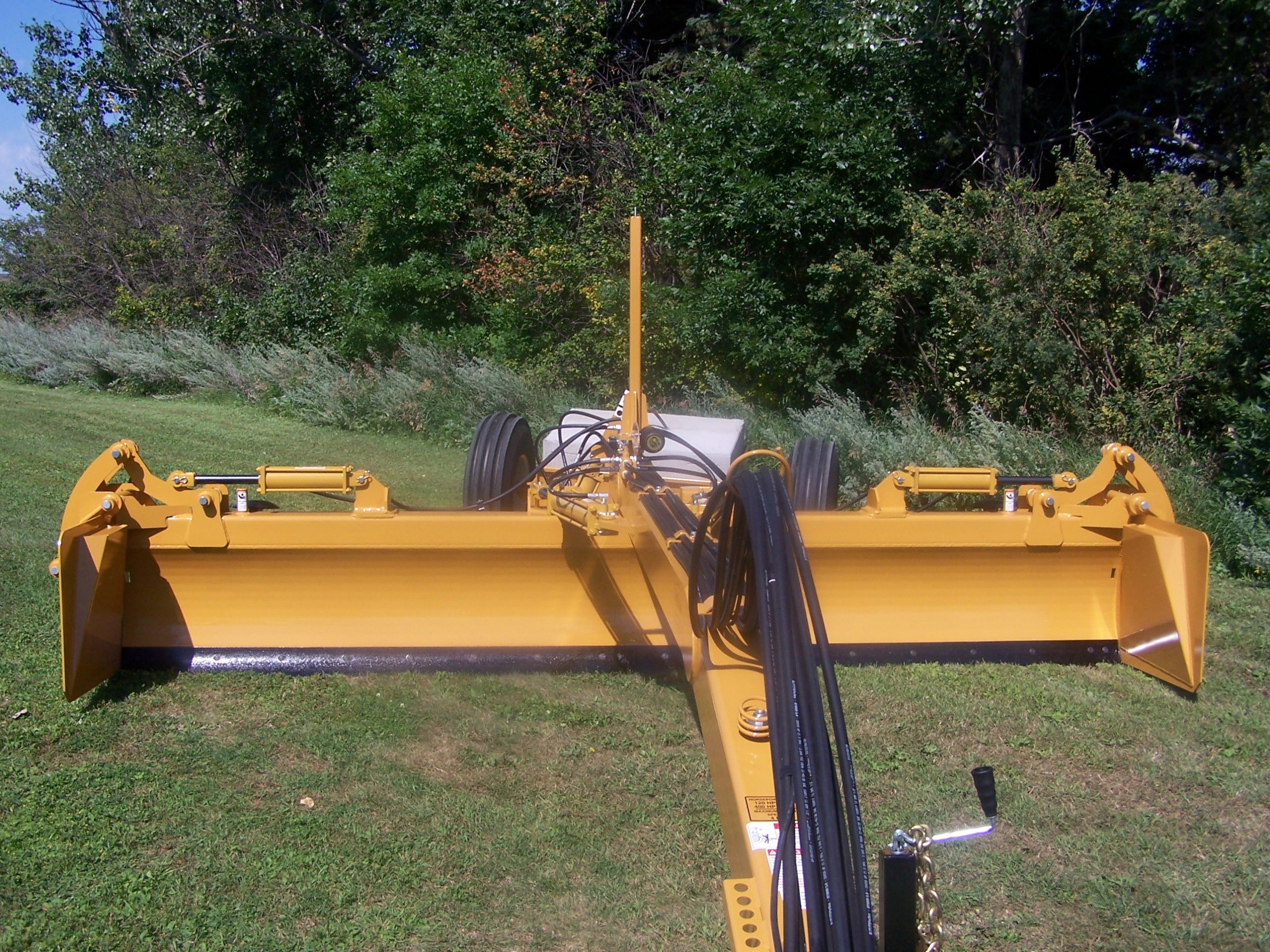

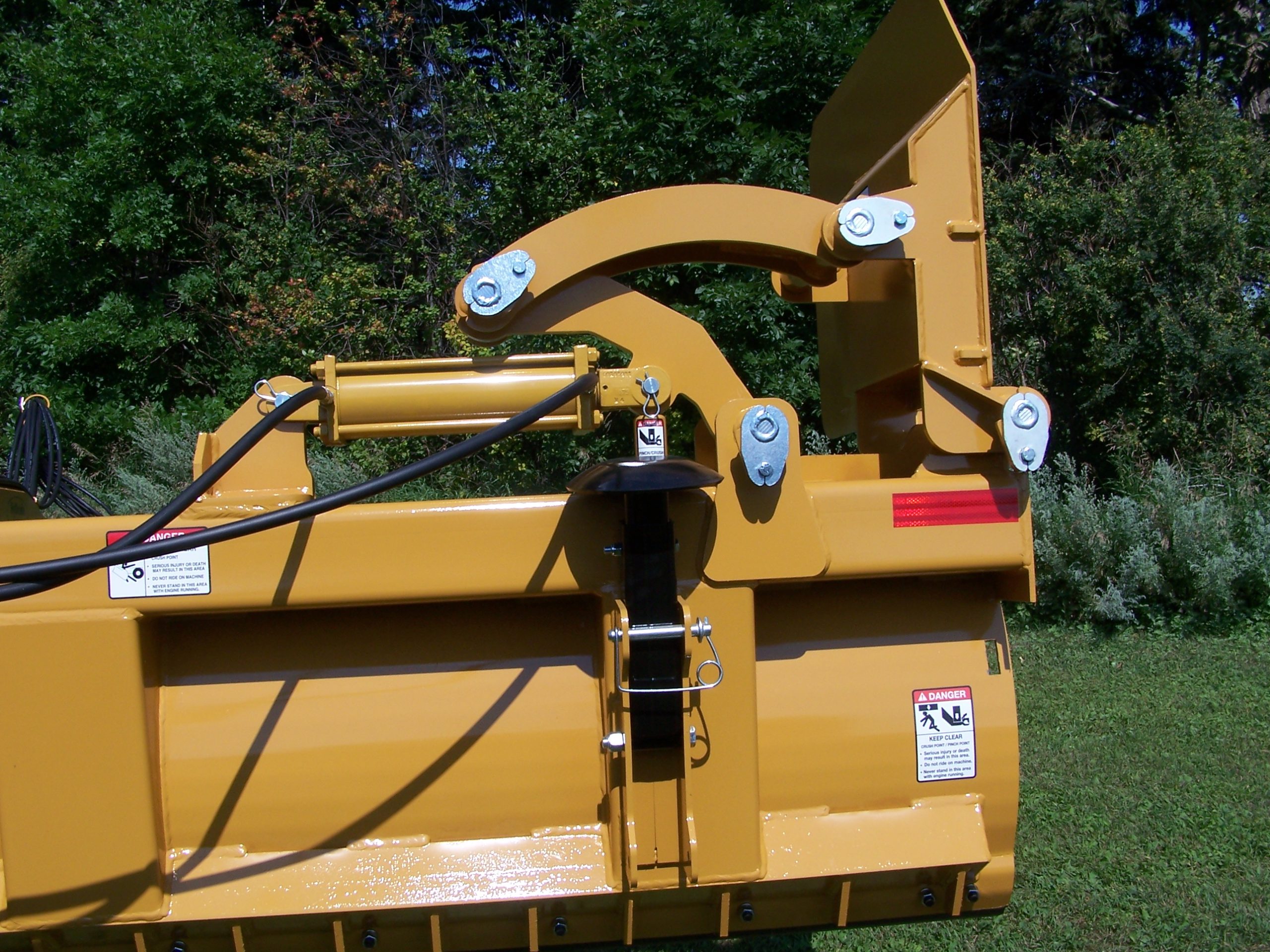

1600RS-HB – 16’ Rear Steer HyGrade Grader

    • Requires 4 hydraulic remotes
    • 16′ blade length
    • Blade angles 45 degrees left and right.
    • Blade tilts 15 degrees left and right for slope cuts.

For more information: Contact Johnson Manufacturing at

Blade

Blade Angle 45°, Blade Height 30", Blade Length 16', Blade Tilt 15°, Blade to Ground Clearance 31"

Tires

Quad Rib 11.00 x 16", 8 ply

Hubs and Spindles

6000# 8 bolt

Total Weight

8220#

Tongue Weight

1995#

Cutting Width at 45° Angle

11' 3"

Overall Length

26'

HP Range

120 – 400

Weight Box

46 1/2" x 34" x 12"
